ECS 関連アップデートでデプロイ状況を確認できる API のサポートが発表されました.普段デプロイの際はコンソールで確認を行っていたのでその手間が一定解消されそうだと思い,どんな確認が取れるのかを手元で CLI を試してみます.

今回アップデート概要
まとめ

今回アップデート概要

今回発表された API はlistServiceDeployments, describeServiceRevisions, describeServiceDeployment になります.また,ECS サービスのデプロイ履歴が90 日間保持されてコンソールとAWS CLI で確認が可能になりました.この記事では追加された API の挙動を CLI で確認した内容をまとめていきます.なお,CLI のバージョンは以下のとおりです.

$ aws --version
aws-cli/2.19.4 Python/3.12.7 Darwin/23.5.0 source/arm64

listServiceDeployments

listServiceDeployments では ECS サービスのデプロイごとの状況を確認できるようになっています.list-service-deployments を実行すると以下の例では2回のデプロイを試したのでその状況が表示されました.

awscli.amazonaws.com

$ aws ecs list-service-deployments --cluster example --service blog-demo
{
    "serviceDeployments": [
        {
            "serviceDeploymentArn": "arn:aws:ecs:ap-northeast-1:111222333444:service-deployment/example/blog-demo/xOuzLGQkLj4Fgx4pScx-F",
            "serviceArn": "arn:aws:ecs:ap-northeast-1:111222333444:service/example/blog-demo",
            "clusterArn": "arn:aws:ecs:ap-northeast-1:111222333444:cluster/example",
            "startedAt": "2024-11-10T14:38:15.960000+09:00",
            "createdAt": "2024-11-10T14:38:14.578000+09:00",
            "targetServiceRevisionArn": "arn:aws:ecs:ap-northeast-1:111222333444:service-revision/example/blog-demo/0842152099039089140",
            "status": "IN_PROGRESS"
        },
        {
            "serviceDeploymentArn": "arn:aws:ecs:ap-northeast-1:111222333444:service-deployment/example/blog-demo/TpNdMFMET_zrLGeqX15se",
            "serviceArn": "arn:aws:ecs:ap-northeast-1:111222333444:service/example/blog-demo",
            "clusterArn": "arn:aws:ecs:ap-northeast-1:111222333444:cluster/example",
            "startedAt": "2024-11-10T14:06:20.206000+09:00",
            "createdAt": "2024-11-10T14:06:18.128000+09:00",
            "finishedAt": "2024-11-10T14:26:15.246000+09:00",
            "targetServiceRevisionArn": "arn:aws:ecs:ap-northeast-1:111222333444:service-revision/example/blog-demo/1308369492597490708",
            "status": "ROLLBACK_FAILED",
            "statusReason": "No rollback candidate was found to run the rollback."
        }
    ]
}

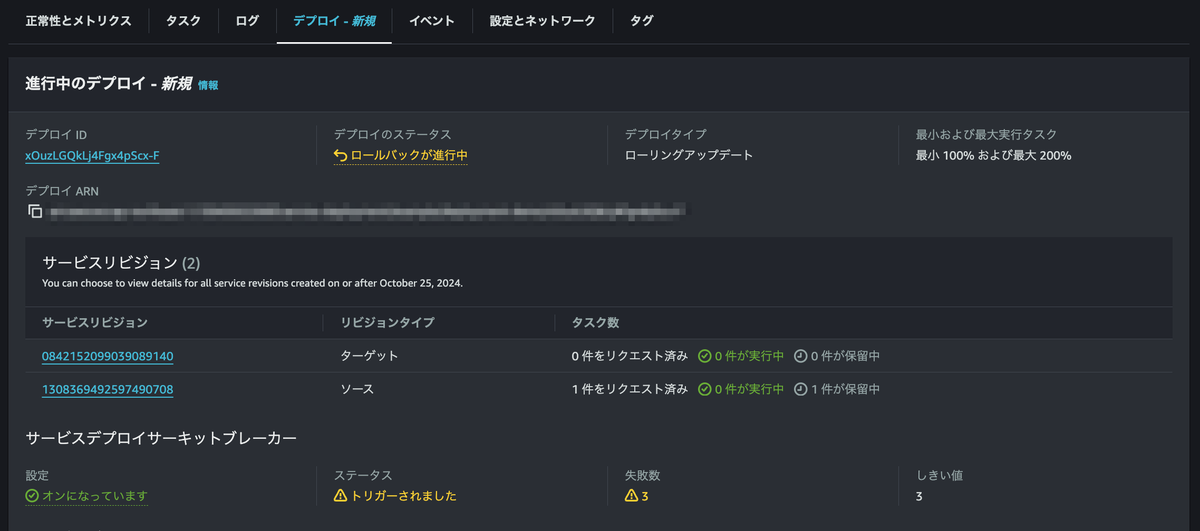

コンソールで確認すると,デプロイごとに識別子が振られて後述する API で確認できる,デプロイの関連情報を得られるようになっているようです.

describeServiceDeployments

describeServiceDeployments では ECS タスク数やサーキットブレーカーのステータスなどデプロイごとの詳細情報を取得できます.listServiceDeployments は全体を見て,describeServiceDeployments では個別のデプロイ詳細を確認するための用途のようですね.

awscli.amazonaws.com

$ aws ecs describe-service-deployments --service-deployment-arns arn:aws:ecs:ap-northeast-1:111222333444:service-deployment/example/blog-demo/xOuzLGQkLj4Fgx4pScx-F
{
    "serviceDeployments": [
        {
            "serviceDeploymentArn": "arn:aws:ecs:ap-northeast-1:111222333444:service-deployment/example/blog-demo/xOuzLGQkLj4Fgx4pScx-F",
            "serviceArn": "arn:aws:ecs:ap-northeast-1:111222333444:service/example/blog-demo",
            "clusterArn": "arn:aws:ecs:ap-northeast-1:111222333444:cluster/example",
            "createdAt": "2024-11-10T14:38:14.578000+09:00",
            "startedAt": "2024-11-10T14:38:15.960000+09:00",
            "updatedAt": "2024-11-10T14:38:16.502000+09:00",
            "sourceServiceRevisions": [
                {
                    "arn": "arn:aws:ecs:ap-northeast-1:111222333444:service-revision/example/blog-demo/1308369492597490708",
                    "requestedTaskCount": 0,
                    "runningTaskCount": 0,
                    "pendingTaskCount": 0
                }
            ],
            "targetServiceRevision": {
                "arn": "arn:aws:ecs:ap-northeast-1:111222333444:service-revision/example/blog-demo/0842152099039089140",
                "requestedTaskCount": 0,
                "runningTaskCount": 0,
                "pendingTaskCount": 0
            },
            "status": "IN_PROGRESS",
            "deploymentConfiguration": {
                "deploymentCircuitBreaker": {
                    "enable": true,
                    "rollback": true
                },
                "maximumPercent": 200,
                "minimumHealthyPercent": 100
            },
            "deploymentCircuitBreaker": {
                "status": "MONITORING",
                "failureCount": 0,
                "threshold": 0
            },
            "alarms": {
                "status": "DISABLED"
            }
        }
    ],
    "failures": []
}

describeServiceRevisions

describeServiceRevisions ではどういった ECS タスクをデプロイしようとしているのか(タスク定義のバージョン,ネットワーク情報,コンテナ名等)を取得できます.従来は個々のタスク定義を見に行っていたのがこの API で確認できるようになりました.

awscli.amazonaws.com

aws ecs describe-service-revisions --service-revision-arns arn:aws:ecs:ap-northeast-1:111222333444:service-revision/example/blog-demo/0842152099039089140
{
    "serviceRevisions": [
        {
            "serviceRevisionArn": "arn:aws:ecs:ap-northeast-1:111222333444:service-revision/example/blog-demo/0842152099039089140",
            "serviceArn": "arn:aws:ecs:ap-northeast-1:111222333444:service/example/blog-demo",
            "clusterArn": "arn:aws:ecs:ap-northeast-1:111222333444:cluster/example",
            "taskDefinition": "arn:aws:ecs:ap-northeast-1:111222333444:task-definition/blog-demo:2",
            "launchType": "FARGATE",
            "platformVersion": "1.4.0",
            "platformFamily": "Linux",
            "loadBalancers": [],
            "serviceRegistries": [],
            "networkConfiguration": {
                "awsvpcConfiguration": {
                    "subnets": [
                        "subnet-xxx",
                        "subnet-xxx"
                    ],
                    "securityGroups": [
                        "sg-xxx"
                    ],
                    "assignPublicIp": "DISABLED"
                }
            },
            "containerImages": [
                {
                    "containerName": "demo",
                    "image": "111222333444.dkr.ecr.ap-northeast-1.amazonaws.com/ecr-public/amazonlinux/amazonlinux:2023"
                }
            ],
            "guardDutyEnabled": false,
            "createdAt": "2024-11-10T14:38:06.544000+09:00"
        }
    ],
    "failures": []
}
